Compound slide with timing-belt drive

Compound slide with timing-belt drive

Art. no. EX-01020

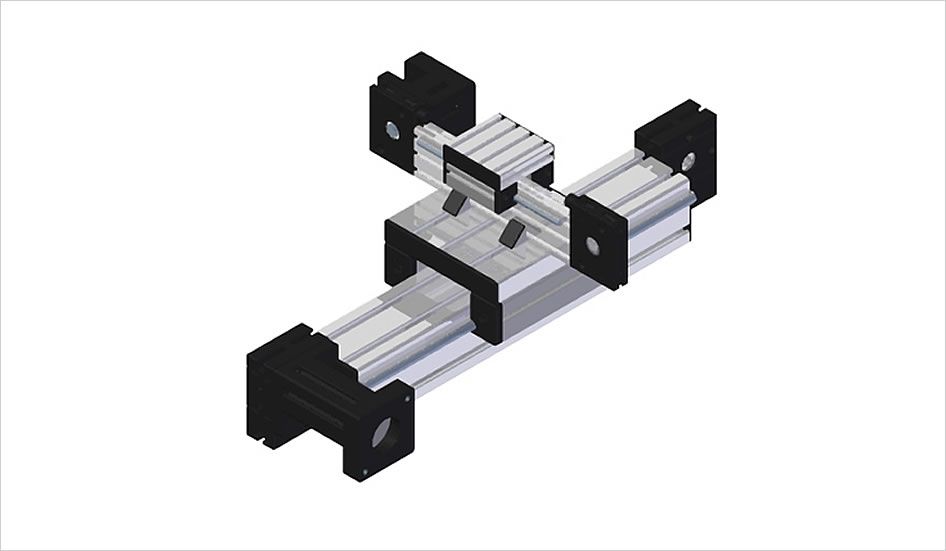

In a compound slide, both axes are moved together by a motor with a timing-belt drive. By distributing force appropriately, the Coupling Housing from item enables users to create low-cost dynamic solutions.

Compound slides can be combined with various profile sizes and are therefore easily integrated into structures made using the MB Building Kit System.
