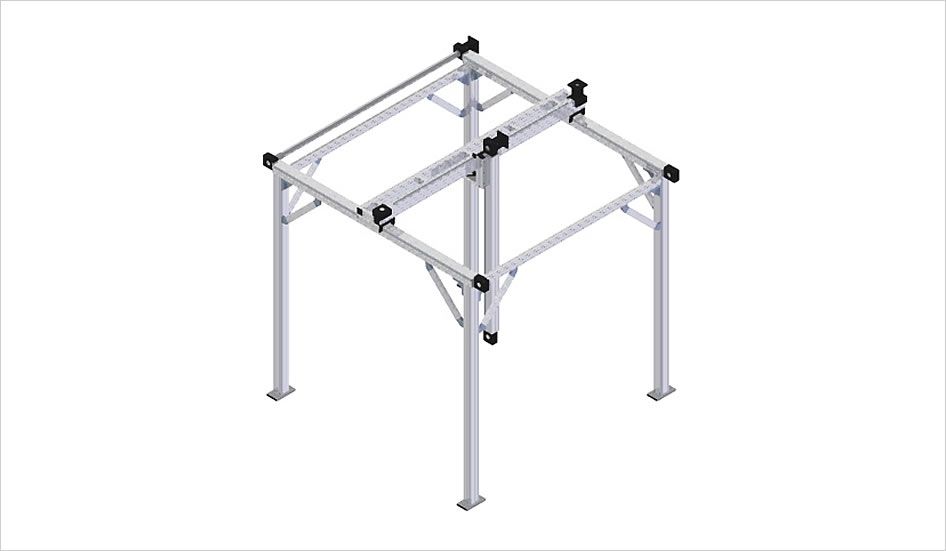

Heavy-duty three-axis handling

Art. no. EX-01022

Exceptional load-carrying capacity and precision are brought together in this item solution for three-axis handling.
The Linear Units are precisely tuned to the task at hand and can be actuated separately or synchronously.

Heavy-duty Angle Brackets and additional struts ensure the frame exhibits the necessary rigidity. Despite its lightweight structure, the latticework design of the Y axis can carry heavy loads.
