Robust, low-maintenance positioning system

Robust, low-maintenance positioning system

Art. no. EX-01005

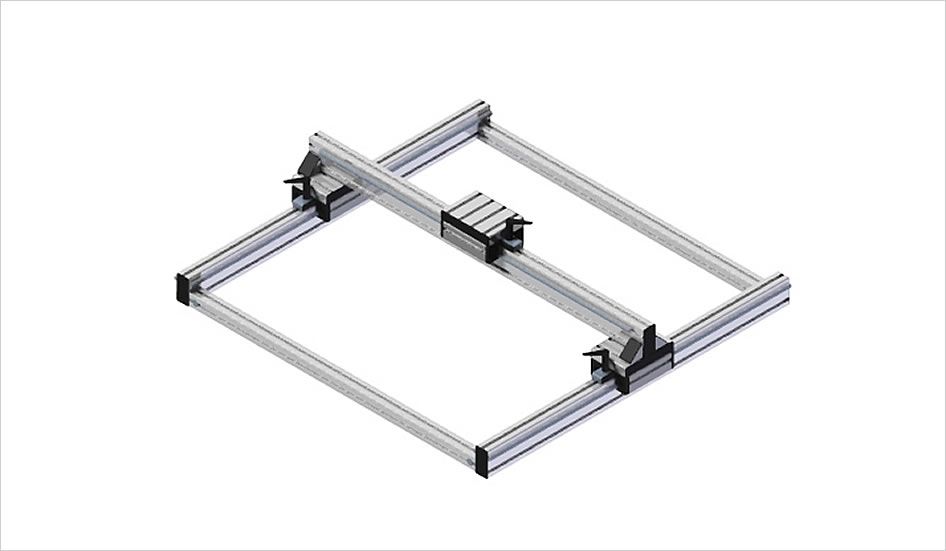

Based on a stable profile frame, the positioning system functions as a reliable aid that can be moved by hand. The Carriages with Double-Bearing Units have End Cap and Lubricating Systems that ensure smooth, play-free guidance and low noise levels.

Slide Clamps are used to hold the axes in place. As a result, the positioning system can be secured in either one or both directions.

Downloads

CAD data (ZIP)
390 KB
3D (PDF)
619 KB
Part list (Excel)
50 KB
Part list (PDF)
11 KB
